Description

• For top and front flush actuation
• Comes with top or front access to cistern

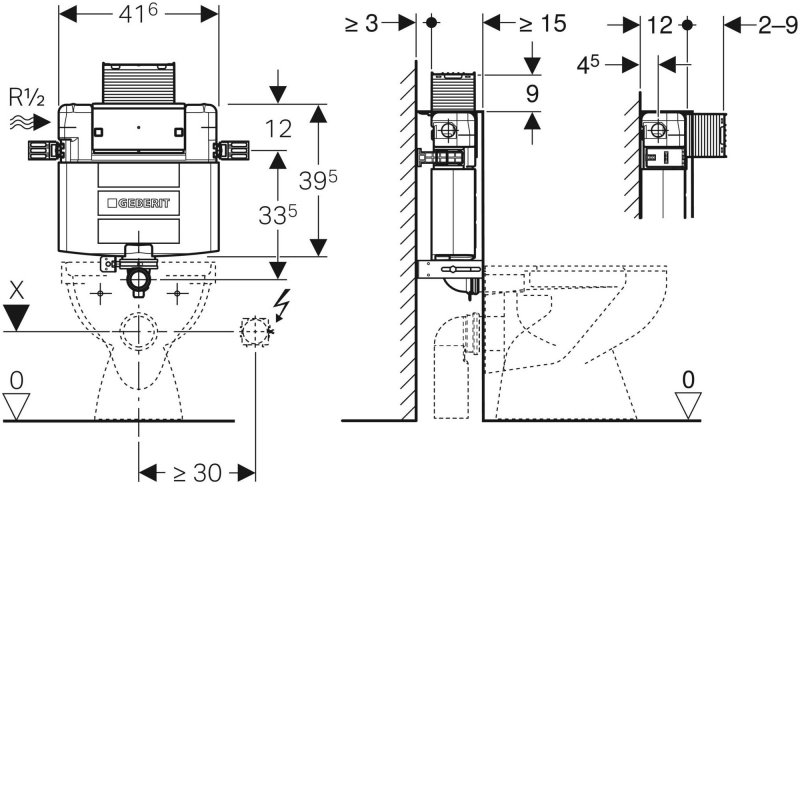

• Installation depth of 160 – 205mm
• For drywall construction
• For installation in part-height prewall installations
• For floor-standing WCs
• Fully insulated against condensation
• Water supply connection left
• Protection housing for service opening, can be cut to length
• Connection hose to angle stop valve can be screw-connected by hand
• Fast adjustment of the actuator rods for flush plate
• Installation height 820mm
• Flush valve features 6l and 4.5l flush settings to enable either a 6l and 3l flush or a 4.5l and 3l flush
• Must be used with pans designed for low volume flush
• The cistern can be operated with used water (rainwater) provided it is passed through a filter system first
• Supplied with a 1 year guarantee from the manufacturer
